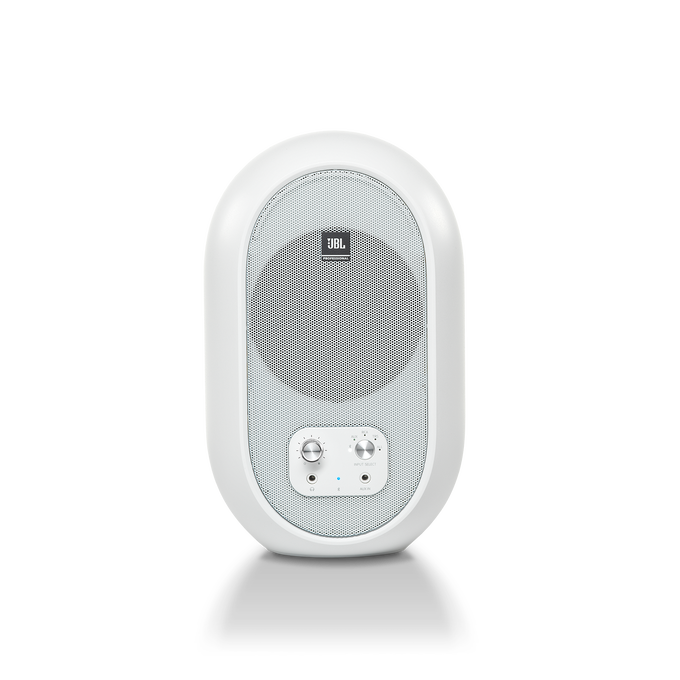

JBL 104-BT (Pair)
€ 229,99
4.5 (4)
Write a review
JBL 104-BT (Pair) Koaksiaalinen elementti - Image

Koaksiaalinen elementti

4,5 tuuman (118 mm) bassoelementti ja 0,75 tuuman (19 mm) pehmeäkalottinen diskanttielementti

JBL 104-BT (Pair) Integroitu 60-wattinen luokan D tehovahvistin - Image

Integroitu 60-wattinen luokan D tehovahvistin

Jakaa 30 wattia kummallekin kaiuttimelle

JBL 104-BT (Pair) Akustisesti optimoitu - Image

Akustisesti optimoitu

Pöydälle sijoitettavaksi

Ominaisuudet

JBL 104-BT (Pair) Kolme tuloliitäntää ja sisäänrakennettu Bluetooth - Image

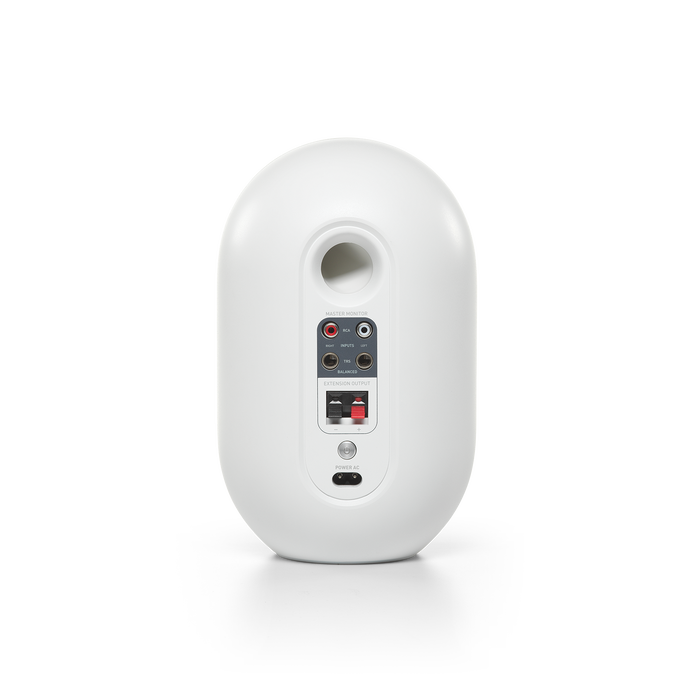

Kolme tuloliitäntää ja sisäänrakennettu Bluetooth

Mahdollistavat liittämisen ammattitason laitteisiin, yksittäisiin soittajiin ja kuluttajatuotteisiin

JBL 104-BT (Pair) Älykkäitä ominaisuuksia - Image

Älykkäitä ominaisuuksia

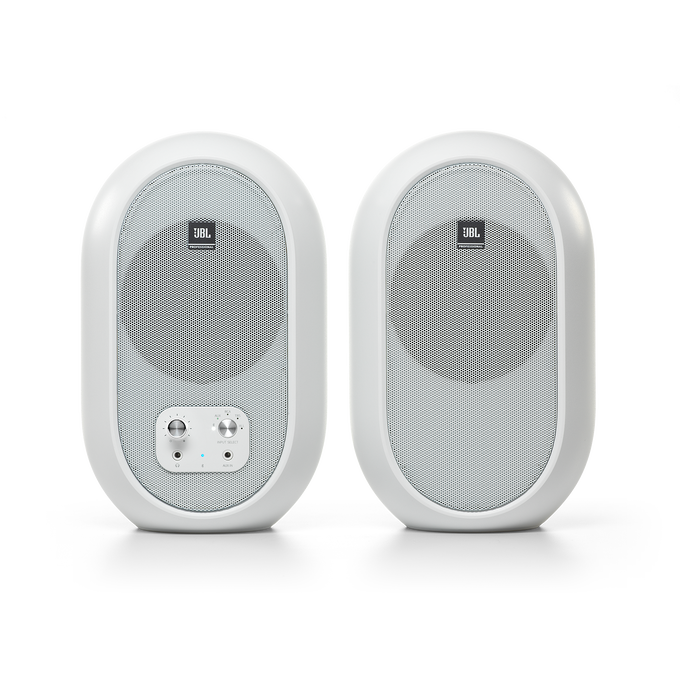

Sisältää äänenvoimakkuuden säädön ja tulosignaalin valinnan etupaneelissa sekä kuulokeliittimen, jossa on automaattinen kaiuttimen mykistys

Tiedot ja lataukset

Item# 104SET-BTW-EK-LS

Kuvaus

Legendaarinen ääni – Ilman johtoja

Kompaktit JBL 104-BT -studiomonitorit Bluetooth-toiminnolla, uusimmat mallit 1 Series -sarjaa, hyödyntävät JBL Professionalin 70 vuoden aikana tekemää kehitystyötä tuottaessaan luokkansa aidointa ja tarkinta ääntä. Ne ovat täydellisiä levyttäville muusikoille, tuottajille, podcastien tekijöille ja vloggaajille sekä ammattiääniteknikoille, jotka tavoittelevat tarkkaa kannettavan laitteen referenssiä Bluetooth-striimausta käyttäen. JBL 104-BT -studiomonitoreissa yhdistyvät tehokas 4,5 tuuman (118 mm) koaksiaalibassoelementti ja 0,75 tuuman (19 mm) pehmeäkalottinen diskanttielementti, tehokas integroitu 60 watin vahvistus ja innovatiivinen akustiikkasuunnittelu aidon äänen tuottamiseksi sekä poikkeuksellinen kuvantaminen ja selkeät yksityiskohdat. Bluetooth-striimauksen ansiosta miksaukset voidaan tarkistaa Bluetoothin välityksellä ja varmistaa, että ne kuulostavat hyvältä kaikissa kuuntelutilanteissa. Musta 104-BT ja valkoinen 104-BTW ovat molemmat sulavan tyylikkäitä ja muodoltaan kompakteja ja näyttävät upeilta missä tahansa studiossa säästäen samalla arvokasta työtilaa. Luovat ammattilaiset, musiikin ystävät ja kaikki, jotka haluavat nauttia joustavasti sekä langallisen että langattoman äänen striimauksesta laadukkaisiin studiomonitoreihin, voivat luottaa siihen, että JBL 104-BT tarjoaa tarkan, luotettavan äänireferenssin ja todella nautittavan kuuntelukokemuksen.

Device Compatibility

Bluetooth

Tuotetiedot

Bluetooth-versio
5.0
Bassoalueen elementti
118 mm
Diskanttialueen elementti
19 mm, pehmeä kalotti
Jakosuodin
1725 Hz, ensimmäinen aste
Tehovahvistin
60 W (30 W kummassakin kaiuttimessa), luokka D
Herkkyys
87 dB äänenpaine @ 1 m ja -10 dBV Aux-tulo (äänenvoimakkuus = maks.)
Suurin jatkuva äänenpaine
89 dB
Järjestelmän huippuäänenpaine
102 dB (vaaleanpunainen kohina, 12 dB huippukerroin)
Enimmäisäänenpaine, hetkellinen huippu
104 dB
Suurin huipun tulotaso (-10 dBV / +4 dBu):
+6 dBV / +20.3 dBu
Taajuusalue (-3 dB äänenpaine)
88 Hz - 20 kHz
Taajuusalue (-10 dB äänenpaine)
60 Hz - 20 kHz
Järjestelmän nimellisimpedanssi
8 Ω
Vähimmäisimpedanssi
7,8 Ω @ 260 Hz
Kotelon viritystaajuus
72 Hz
Järjestelmän säröytymiskriteerit
<10% THD maksimiteholla ja täydellä kompressorin/limitterin kytkennällä
Critères de distorsion électrique
taux de distorsion harmonique < 0,2 % à 1 kHz / sortie 2,83 VRMS ; taux de distorsion harmonique < 1 % à 1 kHz, rendement nominal total
Signaali-kohinasuhde
75 dBA (A-painotettu), 70 dBr (painottamaton), suhteessa 2,83 VRMS:n tehoon suurella taajuudella
Suuntakuvio (horisontaalinen x vertikaalinen)
120º x 60º
Acoustic Test Specification
ATS# 1000340443

Mitat

Korkeus
247 mm
Leveys
153 mm
Syvyys
124 mm
Nettopaino
päämonitori = 2,06 kg; lisämonitori = 1,73 kg

Design

Enclosure Type
Ported
Enclosure Material
ABS with metal grille
Enclosure Finish
Matte black acrylic paint (104-BT) ; Matte white acrylic paint (104-BTW)

Audio Output

System Output Type
1/8" stereo headphone with auto speaker mute

Audio Input

System Input Type
Bluetooth, 1/8" Aux, RCA, 1/4" TRS balanced
Input Selection Options
Bluetooth, Aux, RCA, TRS, All

Powering Interface

System Power Handling
30 W x 2 @ 100 hours, IEC/SMS
System Polarity
EIA
AC Input Voltage
100 – 240 VAC (± 10%), 50/60 Hz
Current Draw
85 watts
Electrical Current Draw (W) Idle 100 / 240 VAC
3.52 / 3.70
Electrical Current Draw (W) Max Power 100 / 240 VAC
80 / 80
Electrical Current Draw (W) Low Power Standby Mode 100 / 240 VAC
0.34 / 0.46

Pakkauksen sisältö

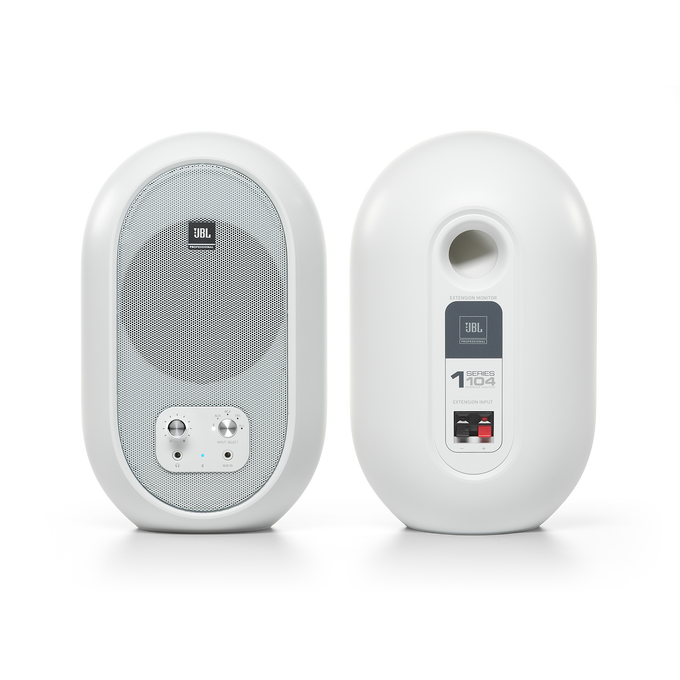

  • 1 x 104-BT-päämonitori

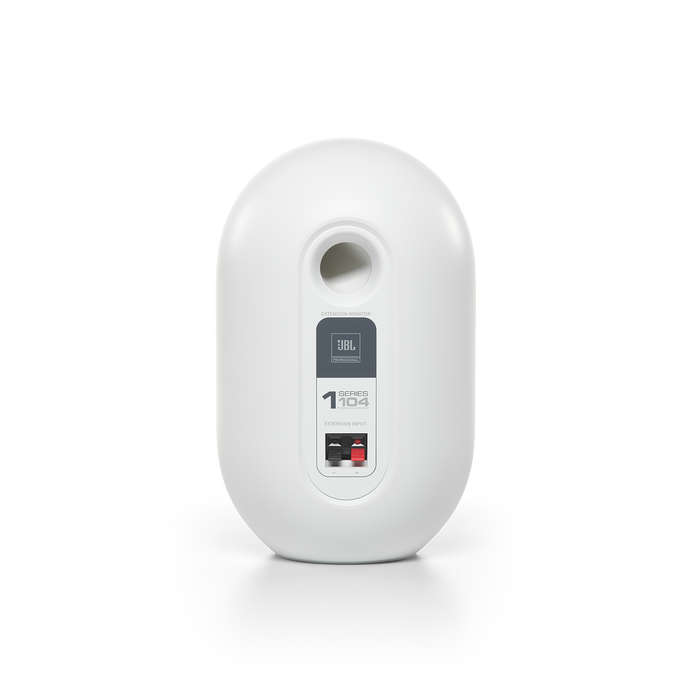

  • 1 x 104-BT-lisämonitori
  • 1 x lisämonitorin kaiutinjohto (2-johtiminen, 2 metriä)
  • 1 x 3,5 mm RCA-audiojohtoon
  • 1 x alueellinen virtajohto
  • 1 x pika-asennusopas
Pakkauksen sisältö

Asiakirjat ja lataukset

Mitä ammattilaiset sanovat

Wired:

Wired:

”Loistava monitorisetti, joka ei tee pöydästä sotkuisen näköistä. Nämä korkealaatuiset kaiuttimet osoittavat, miksi kannattaa panostaa kunnolliseen nauhoitusmikrofoniin, joka tuo esiin sisältöä entisestään parantavat yksityiskohdat.”

CinemaSound:

CinemaSound:

Jos tarvitset luotettavan kaiutinjärjestelmän, jolla on lisäksi pienet ulkomitat, et voisi valita parempaa kuin 104-mallin kaiuttimet. Ne ovat enemmän kuin hintansa arvoiset.”

Music Connection:

Music Connection:

”Luotettava valinta lähes mihin tahansa käyttöön missä tahansa tilassa, kun haluat kuunnella loistavaa ääntä pienestä ja tyylikkäästä pöytäkaiuttimesta.”

American Songwriter:

American Songwriter:

”Se on paljon hienostuneempi kuin mikään muu koskaan käyttämäni pöytämallinen monitori… se vie pienen tilan pöydällä mutta tuottaa silti voimakasta ja loistavaa ääntä.”

Guitar Player:

Guitar Player:

”1 Series 104 -monitorit kuulostivat kaikki loistavilta tuottaen mukavan yksityiskohtaisia diskantteja ja vaikuttavia bassoja kokoonsa nähden”

Red Dot -voittaja 2020

Red Dot -voittaja 2020

Arvostelut ja vastauksia kysymyksiin

Arvostelut

Rated 3 out of 5 by from Not really a sweet spot The sound quality of these speakers is incredible, but they suffer from trying to be too many different things at once. They don't really work as general listening or computer speakers – the sound is too flat and just nowhere near as immersive as you could get from other options at the same price-point; your ears will be left wanting. They *also* don't really work as hi-fi or monitor speakers, due to the absence of bass (which is very noticeable). I thought these would be a decent substitute for the 305s, which were out of stock, but I was pretty disappointed. I would suggest if you are looking for monitors even at the intro level to just save up for something slightly more expensive.
Date published: 2021-05-31
Rated 5 out of 5 by from Great Sound I bought these to replace a set of blown-up KRK Rokit 5s (G2) because the amp sections had died, probably bad caps in the amp section. Replacing the amp sections was economically unfeasible so I found these online and decided to take the plunge. What a pleasant surprise. JBL hits another home run!!!
Date published: 2020-04-11
Rated 5 out of 5 by from Great for Laptop Installed the 104-BT’s 8-6-20. Just regular sound was bassy but I adjusted the EQ lows down a little and increased the highs and the sound quality was GREAT. Very pleased with the purchase.
Date published: 2020-08-07
Rated 5 out of 5 by from Great studio reference monitors. These are some of the best speakers I've ever owned. They are amazing for listening to music casually or using them as serious studio monitors when creating music.
Date published: 2020-07-11
  • y_2023, m_3, d_18, h_22
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.34
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_4
  • loc_fi_FI, sid_jbl-104-bt, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_jbl
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 5ms
  • reviews, product

Kysymyksiä ja vastauksia

My 104's aren't picking up my laptop's Bluetooth signal. My laptop hasn't given me issues with any other Bluetooth device. I keep turning them off and on but nothing is happening as far as the Bluetooth picking them up. They are brand new. Help, please.

Asked by: HEROMUNDO
In your wireless settings try turning on NFC and holding devices close during flashing light, some Bluetooth devices require this.
Answered by: DaCat
Date published: 2021-06-11

is it possible dont HEAR the &quot;TURN ON SOUND&quot; every time i turn it on?

Asked by: Matias Orpianesi
Hello, great question. Currently there is no way to turn off that sound.
Answered by: HARMAN Adviser
Date published: 2021-06-06

Are the 2 balanced TRS inputs Left and Right channel respectively or can one TRS input support both L/R channels?

Asked by: Soother
For inquiries regarding this professional product, you may call Harman Pro at 844-776-4899 or send an email to HProTechSupportUSA@harman.com. Monday to Friday, 9 am to 6 pm (EST).
Answered by: Jem at Customer Support
Date published: 2021-06-06

Can I use two inputs simultaneously(not just plugged but playing simultaneously) with these speakers ?

Asked by: AugustoP
Hello, great question! Yes -- by selecting 'All' on the main monitor, you can play multiple sources simultaneously.
Answered by: HARMAN Adviser
Date published: 2021-06-06

Just bought 104-BTs when turned off from laptop they return to speakers on laptop and have to be reset everytime.

Asked by: james1
Hello, we're not entirely sure we understand the situation, but here's our best attempt at helping: Consumer Bluetooth devices (headphones, etc.) automatically connect to a known device (phone, etc.) immediately after a device is turned on. Because these speakers have multiple input sources, it does not default to the Bluetooth input when powered on, thus requiring you to physically press the Bluetooth button when they&rsquo;re ready to sync the speakers to a device. Hopefully this helps, but please reach out to HARMAN Support if you continue experiencing issues.
Answered by: HARMAN Adviser
Date published: 2021-06-06

How far apart can the 2 speakers be placed?

Asked by: sr2884
The speakers have to be placed at arm's length for optimal sound output. Check out the diagram on page 2 of our Quick Start Guide here: https://jblpro.com/en/site_elements/jbl-104-bt-quick-start-guide
Answered by: Chastine
Date published: 2022-08-08

Is this product compatible with the LSR310S subwoofer?

Asked by: iamkespinosa
Please contact our Professional Division at Phone: 844-776-4899 (8:00AM-6:00PM CST M-F) | Email: hprotechsupportusa@harman.com
Answered by: Ray at Customer Support
Date published: 2022-11-09

Just purchased your 104-BT Monitors. Is there any way to disable that annoying blast of intro noise when you first turn on the monitors? The monitors seem solid. Still getting used to the shape of the monitors.
